Vickers V Series Pump Cartridges,Vickers V Series

Vickers V Series Pump Cartridge: For high performance intra-vane pumps used in plastic machinery, shoe machinery, machine tools, die casting and metallurgical equipment.

Displacement range:7.5～237ml/r

Maximum pressure:14～21MPa

Maximum speed:1800r/min

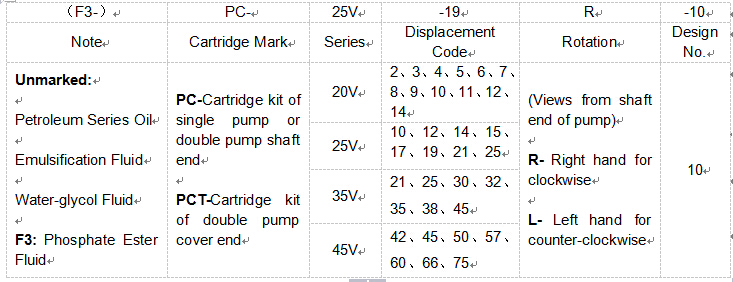

Model Instruction


Technical Data

Series	ΦA	B	C	ΦD	E	ΦF	ΦG	H	K	M(Gasket)	N("O" ring)
20V	82.55	81.5	70.1	47.2	61.5	4.8	76.2	7	73.8	82.76×76.26×3.5	40×3.5
25V	96.8	98.8	87	52.2	71.2	4.8	90.5	7	88.19	97×91×3.5	44×3.5
35V	114.3	117.7	105	72.2	90.3	6.4	108	7	103.94	114.5×108.5×3.5	63.09×3.53
45V	133.35	141.1	129.6	80.2	105.5	6.4	127	11	123.8	133.6×127.6×3.5	71×3.55

Series	Parameter of Inside Spline Tooth Outline of Rotor
Series	Number or Teeth	Diametral Pitch	Pressure Angle	Major Diameter	Minor Diameter
20V	30	48/96	45°	16.617	15.56
25V	40	48/96	45°	21.9	20.86
35V	37	40/80	45°	24.38	23.10
45V	14	12/24	30°	32.59	27.6
